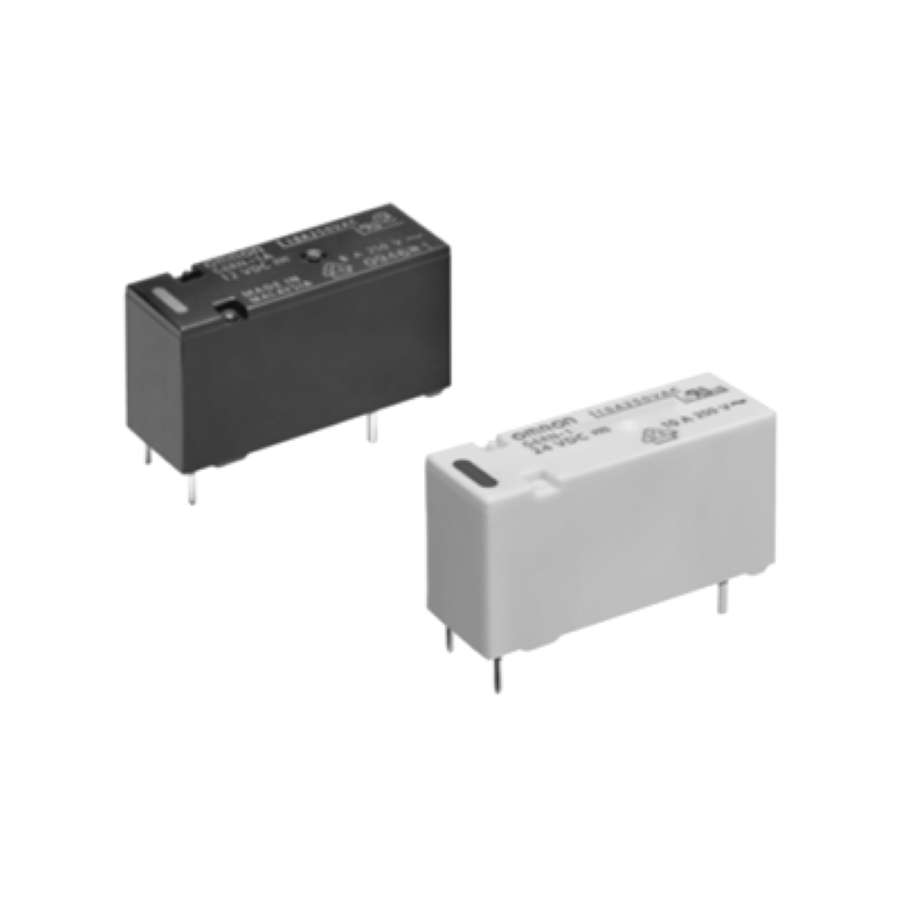

G6RN-1 DC5
Manufacturer:
Omron
Mfr.Part #:
G6RN-1 DC5
Datasheet:
Description:
Power Relays Through Hole 44 mA 114 Ω 5 V General Purpose
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 28.5 mm |
| Width | 10 mm |
| Termination | PC Pin, Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 5 |
| Height | 15 mm |
| Packaging | Bulk |
| Depth | 10 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 9 g |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 8 A |
| Max Current Rating | 8 A |
| Max Voltage Rating (DC) | 30 V |
| Approvals | CSA, IEC, UL, VDE |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 44 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 114 Ω |
| Relay Type | General Purpose |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Contact Current Rating | 8 A |
| switching current | 8 A |
| power consumption | 220 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 30 VDC |
| Coil Power | 220 mW |
| Must Operate Voltage | 3.5 V |
| Must Release Voltage | 500 mV |
